he Geyserwise 150L PV Solar Water Heating System is a cutting-edge solution for efficient and environmentally-friendly hot water supply. With the use of solar panels, it can heat up to 150 liters of water, reducing your household's electricity consumption and carbon footprint. Enjoy a constant supply of hot water while saving on energy costs.

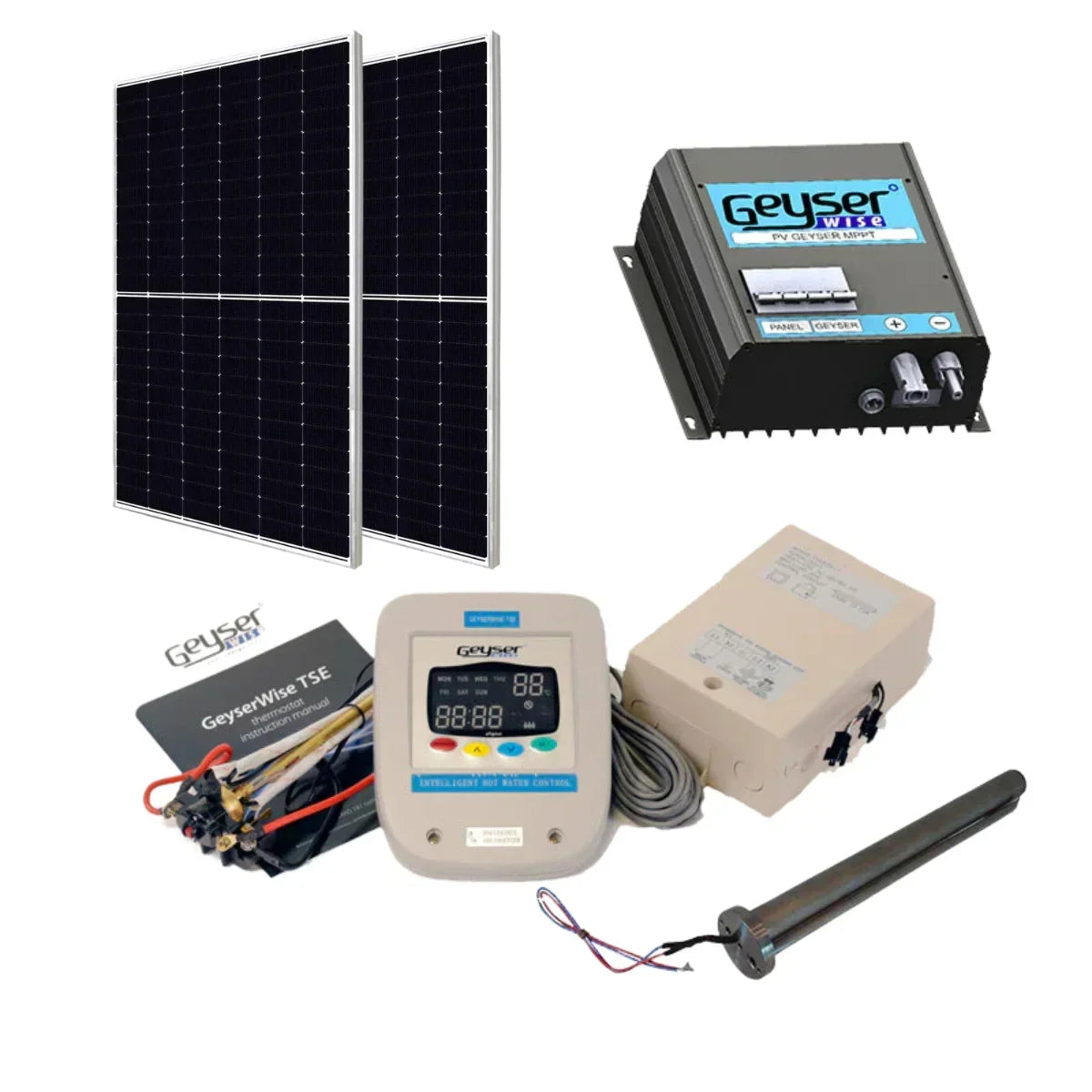

The 150L PV system includes the following components:
- 2 x 590W Solar Panel
- 1 x 2.0 kW AC (230V). 1100W (72V) DC Element
- 1 x Anderson Connectors (on element)
- 1 x PTC Stainless Steel Sensor Tube (Mounted on Flange)
- 1 x ECO MPPT(72V)
- 1 x Geyserwise TSE Geyser Controller with Wifi
- 1 x Element Connector Cable
- 1 x Inline Fuse Holder MC4 and 20A Fuse
- 1 x MC4 Female Connector
- 1 x Pigtail with Male MC4
- 1 x 6m Black 6mm Cable with Female MC4 only
- 1 x 6m Red 6mm Cable with Male MC4 only
A complete Roof Mounting System based on your choice above, includes all required rails, clamps and equipment.
GeyserWise MPPT Charge Controller with Element Connector Cable (1.5M)
- Maximum input voltage 150V.
- Peak efficiency 98%.
- Maximum output amps 40 AMPS.
- Ambient temperature Up to 70°C but de-rated at 1 amp per degree at temperatures above 50°C (do not expose to direct sunlight).
- Environmental IP43.
- Indications 3 LED’s.
- Heating (input command from thermostat).
- Tracking (PV active).
- Power (device turned on).
- Inputs/Outputs - and + signal input / GND and 12V output.
- Adjustment MPPT range from 60V to 120V (must = PV Vmp).
Geyserwise TSE Geyser Controller with Wifi
Geyserwise TSE Geyser Controller with Wifi for use in in Thermosyphon Solar Systems and Normal GeysersSmart Wifi Geyser Controller. Download the Tuya Smart App and manage your geyser from your phone anywhere in the world.
