Pylontech 3.5KWH 48V Lithium Ion Battery – US3000C

Wishlist Compare

R 11,329.00

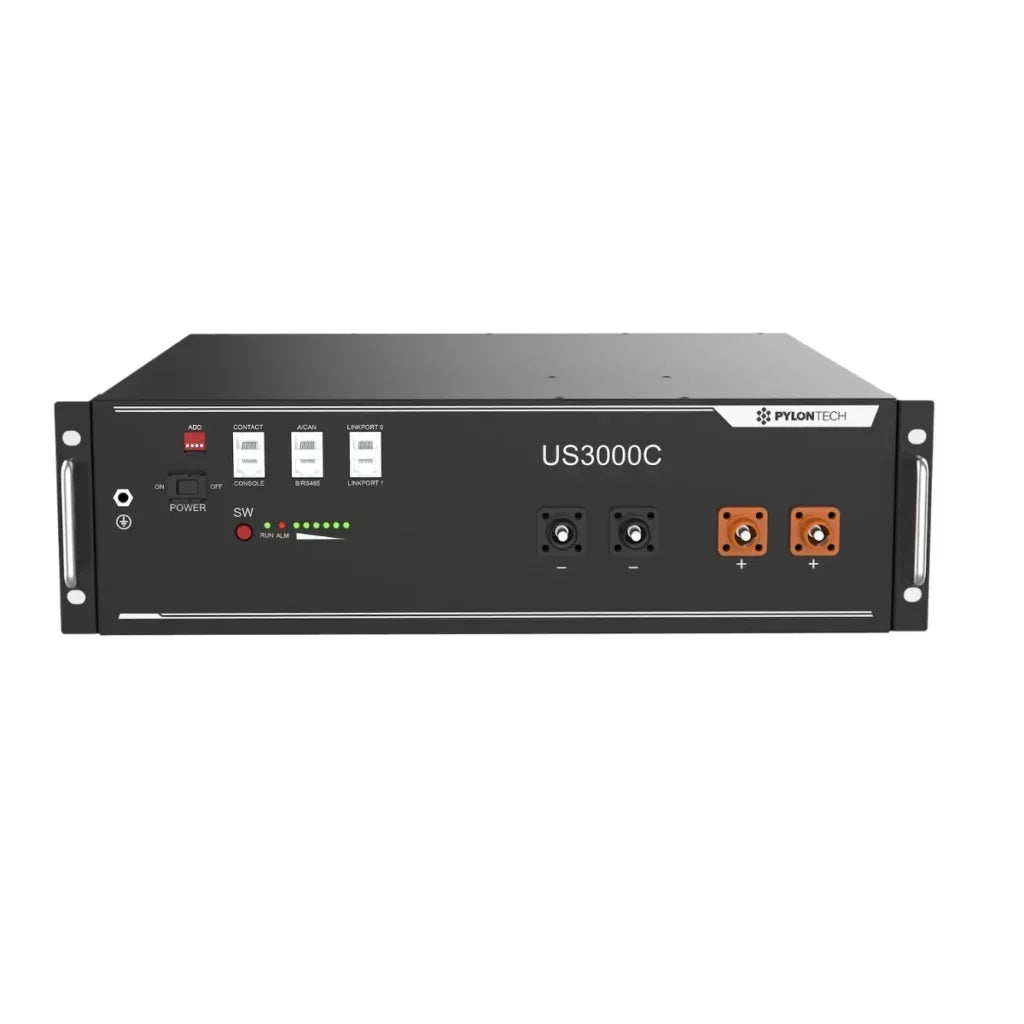

Pylontech 3.5KWH 48V Lithium Ion Battery – US3000C
Model US3000C
Developed with LFP (Lithium Iron Phosphate) Cell to Ensure Highest Safety
BMS Protects the Cell at All Angels Such as Abnormal Temperature, Current, Voltage, SoC, SoH
Vertical Industry Integration Ensures More Than 6000 Cycles With 95% DoD
Modular Design Gives End Customers the Power of Choice of Capacity
Compatible with Most of the Available Hybrid Inverters
Simple Buckle Fixing Minimizes the Installation Time & Cost
Pre-Charge Function to Protect ESS system from surge current
Battery Features:
- Pre-Charge
- Dual-Active Protection
- Flexible Current Steps
- Dry Contact Wake Up
Nominal Voltage: 48V
Nominal Capacity: 3552Wh
Usable Capacity: 3374.4Wh
Discharge Voltage: 44.5V ~ 53.5V
Charge Voltage: 52.5V ~ 53.5V
Single String Quality: 16 Units
Working Temperature: 0°C~50°C
Communication: RS485/ CAN
Weight: 32kg
Dimensions (W x H x D): 442mm x 420mm x 132mm
Refer To Brochure For Detailed Product Specifications.
Product might vary from depicted images.
Graphics are for illustrative purposes only.
